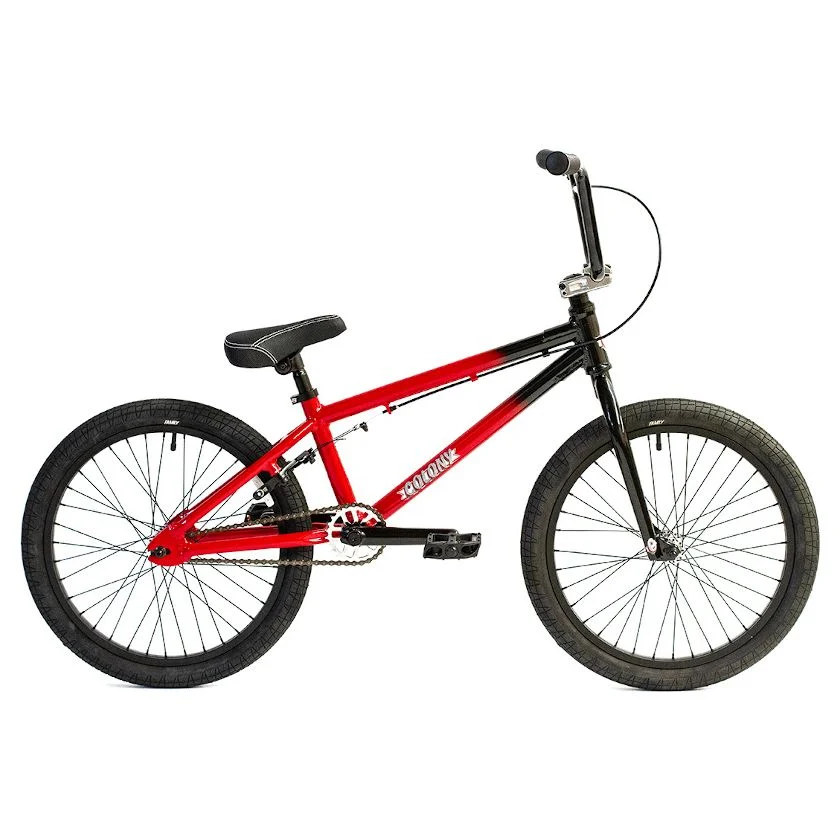

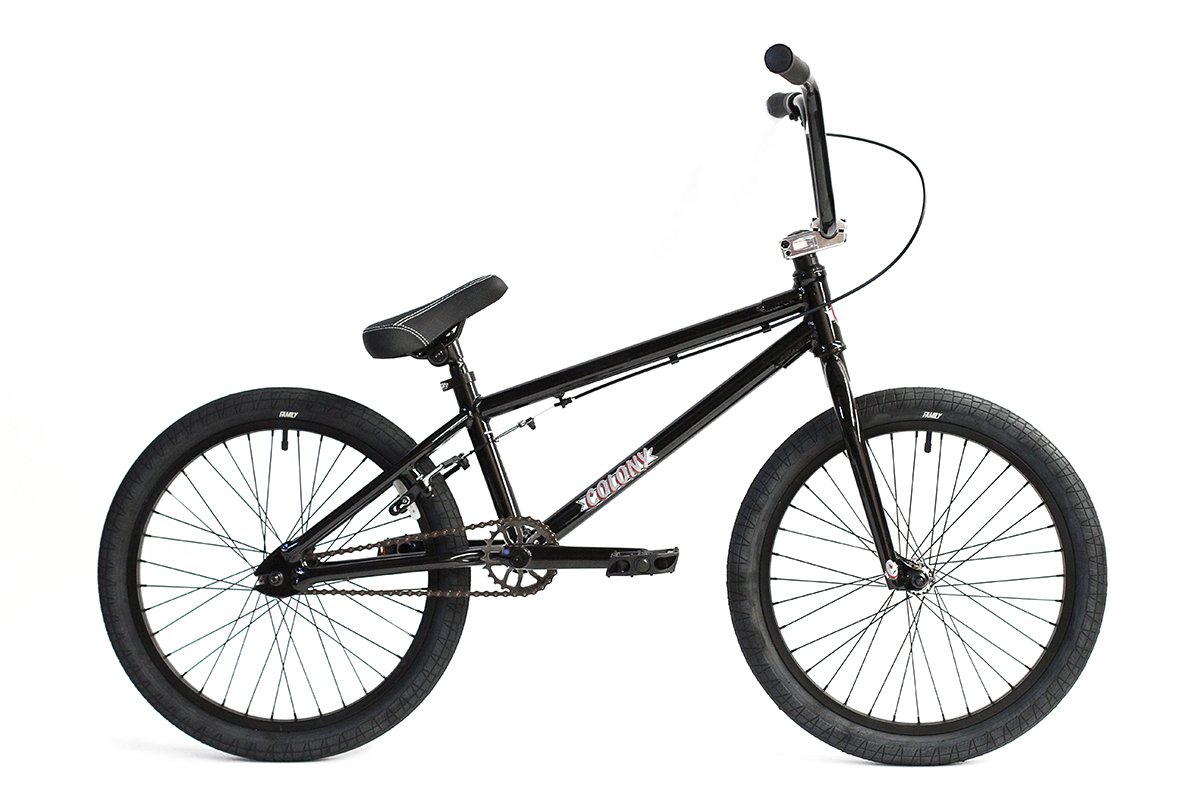

The 20″ Colony Horizon is a special stepping stone bike in that it has a light weight alloy frame, shorter 18.9″ top tube length. This means it feels & rides like an 18″ bike can but has the larger 20″ wheels. This bike is designed for riders up to 12 years old only. It’s a perfect bike to enter the 20″ world & to have fun with BMX.
- Frame: Colony Horizon 20” 18.9”TT 6061T6 Alloy, 12.9” rear, 75.0º HA, 71º ST, Mid BB, 1-1/8″ Integrated Headset.
- Forks: Colony Horizon 20” CrMo tapered legs.

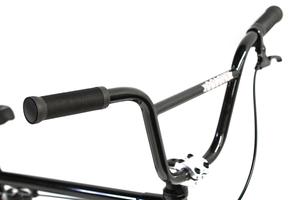

- Handlebars: Colony Horizon 8.5” rise 26” wide CrMo.
- Grips: Colony Horizon
- Headset: 1-1/8” Integrated
- Stem: Colony Horizon Alloy Top Load short reach.
- Brakes (rear): 990 style with clear pads.
- Brake lever (right): Alloy short reach.
- Cables: Slick (rear).
- Sprocket: Colony Horizon 25T.
- Crankset: Colony Horizon Tubular CrMo 3pce 165mm.
- Bottom Bracket: MID sealed bearing.
- Chain: KMC.
- Pedals: Plastic.
- Rims: Alloy Single Wall 36hole.
- Front Tyre: Family F2128 20” x 2.2”.
- Rear Tyre: Family F2128 20” x 2.2”.
- Spokes: Black steel.

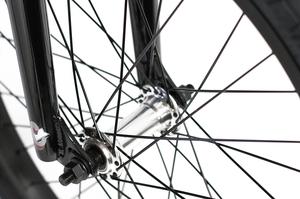

- Front Hub: Colony Horizon Alloy, sealed bearing, 10mm axle.
- Rear Hub: Colony Horizon Alloy, Full sealed bearing cassette, 10mm axle with 9T driver.
- Seat: Colony Horizon Railed.
- Seatpost: Steel 25.4mm diameter.
- Weight: 10.4kgs.
STANDOVER HEIGHT
FROM GROUND TO TOP TUBE: 520mm
FROM GROUND TO SEAT: 600mm (at lowest position)
