Highlights
- 16″ Pro-Style Geometry
- Sunday Current 16″ Tires
- 10t Cassette Hub
- 40mm Top Load Stem
- Odyssey Springfield Brakes
- FSA Headset
- KMC S1 Chain
Specifications
Frame: Sunday Primer, 16.5″ TT, integrated 1-1/8″ head tube
Fork: Sunday Primer, 16″ fork w/ 2-piece steerer tube and welded pre-load
Handlebar: Sunday, 6.75 x 23″, 12° backsweep, 1° upsweep, 2-piece
Stem: Top load, aluminum, 40mm
Headset: FSA integrated, 1-1/8″
Alloy Cap: FSA aluminum cap
Brake Lever: Aluminum, U-brake compatible
Brakes: Odyssey Springfield U-brake

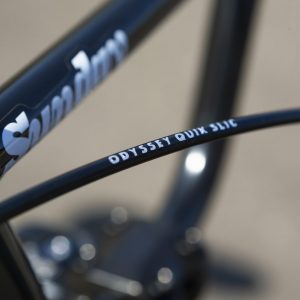

Brake Cable: Odyssey Quik Slic
Grips: Velo Junior

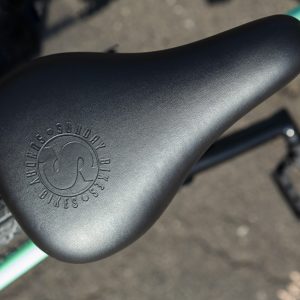

Seat: Sunday Badge, seat and post combo
Seat post: Integrated
Seat Clamp: Integrated
Sprocket: Sunday Sabertooth V2, 25T, steel
Cranks: 127mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Wellgo Junior platform, plastic
Rims: P-7X aluminum, 16″, 20H
Front Hub: Sunday, 20H, low-flange, loose-ball, 3/8″ axle
Rear Hub: Sunday, 20H, sealed, 14mm axle w/ 10T Driver
Spokes: 14g steel, black

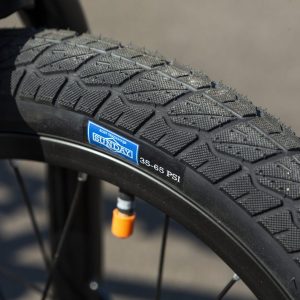

Tires: Sunday Current, 16 x 2.1″ (F & R)
Chain: KMC S1
*Specs subject to change without notice.
GEOMETRY
Frame
Top Tube Length: 16.5″
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 10.6″-10.85”
Bottom Bracket Height: 9.25″
Standover: 6.9″
Handlebar
Rise: 6.75″
Width: 23″
Backsweep: 12°
Upsweep: 1°
Weight
With Brakes: 23.3lbs
