Highlights
- 18″ Pro-Style Geometry
- Sunday Freeze Front Load Stem
- 9t Cassette Hub
- Sunday Cornerstone Grips
- Odyssey Springfield Brakes
- FSA Headset
- KMC S1 Chain

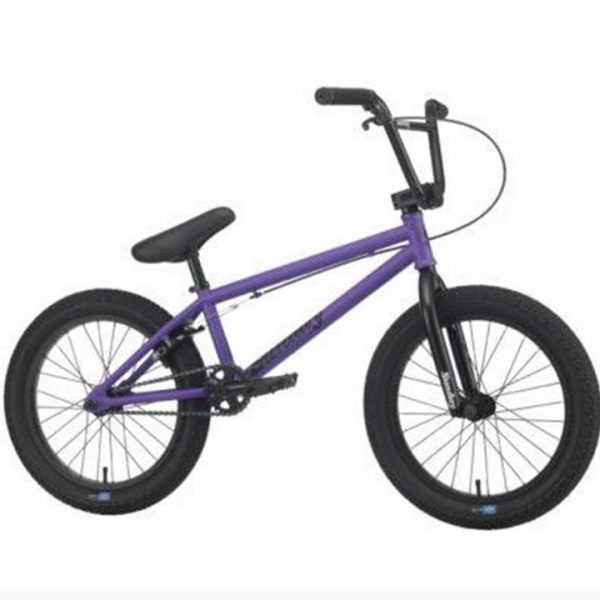

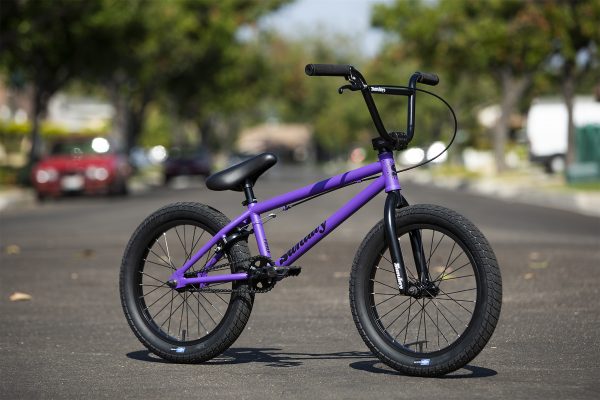

Specifications
Frame: Sunday Primer, 18.5″ TT, integrated 1-1/8″ head tube
Fork: Sunday Primer, 18″ fork w/ 2-piece steerer tube and welded pre-load
Handlebar: Sunday, 7.65 x 25.5″, 12° backsweep, 1° upsweep, 2-piece

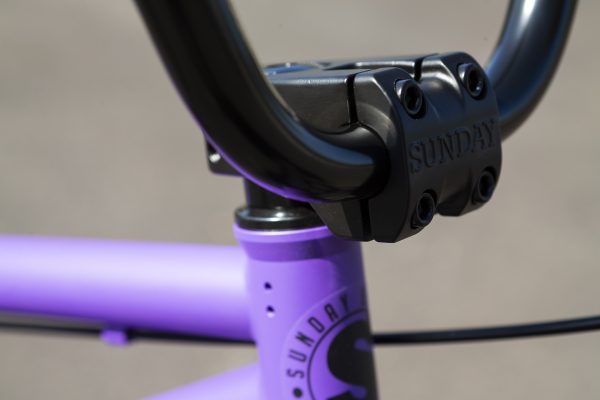

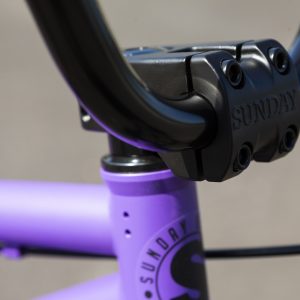

Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated, 1-1/8″
Alloy Cap: FSA aluminum cap

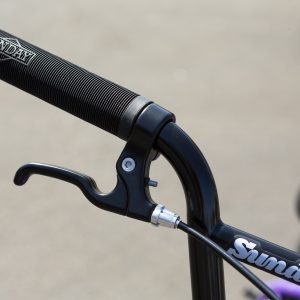

Brake Lever: Aluminum, U-brake compatible

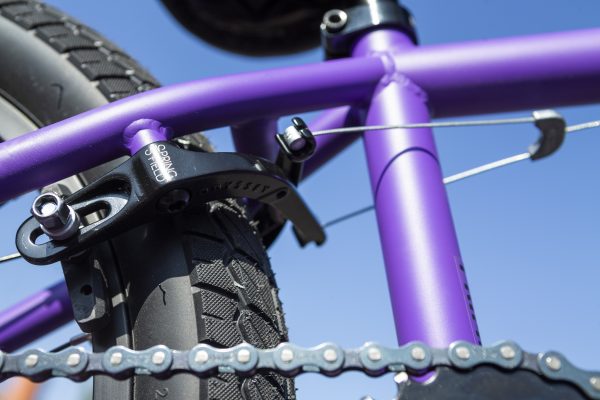

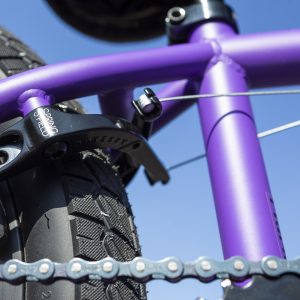

Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Sunday Conerstone

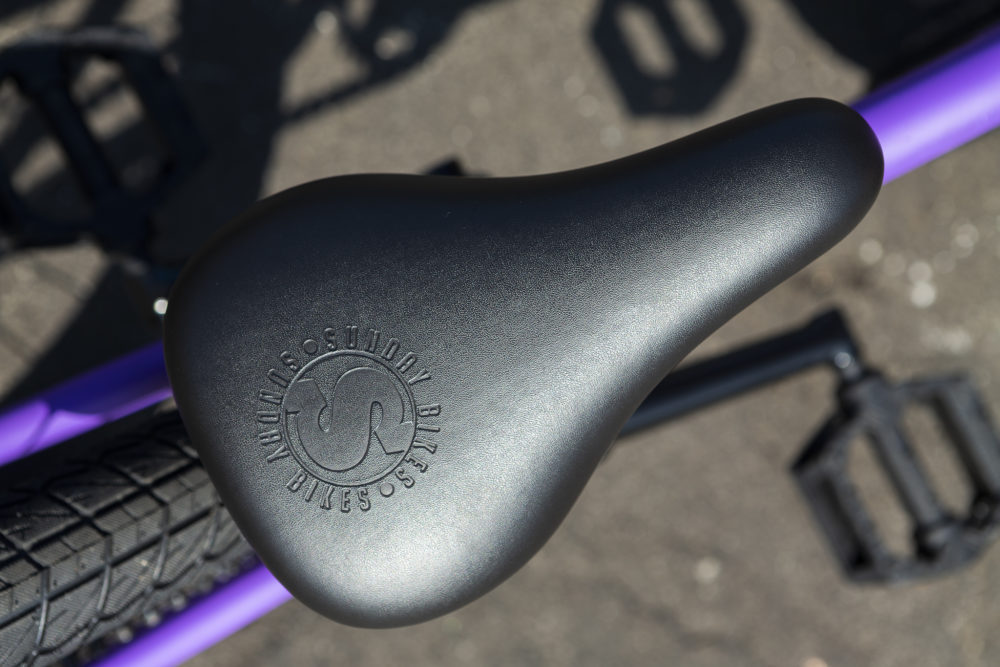

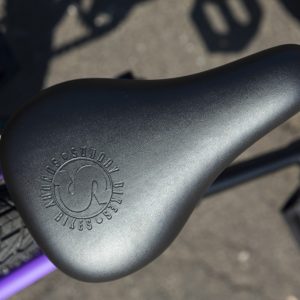

Seat: Sunday Badge, seat and post combo
Seat Post: Integrated
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth V2, 25T, steel
Cranks: 140mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Wellgo platform, plastic
Rims: P-7X aluminum, 18″, 20H
Front Hub: Sunday, 28H, low-flange, loose-ball, 3/8″ axle
Rear Hub: Sunday, 28H, sealed, 14mm axle w/ 9T Driver
Spokes: 14g steel, black
Tires: Sunday Current, 18 x 2.2″ (F & R)
Chain: KMC S1
*Specs subject to change without notice.
GEOMETRY
Frame
Top Tube Length: 18.5″
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 11.7-12.00”
Bottom Bracket Height: 10.35″
Standover: 7.5″
Handlebar
Rise: 7.65″
Width: 25.5″
Backsweep: 12°
Upsweep: 1°
Weight
With Brakes: 23.3lbs
