Gary Young rips on this bike daily for a reason. Follow @garybyoung.
Highlights
- 41-Thermal® Lifetime Warranty on Frame, Fork, and Cranks
- Sunday Soundwave v3 Frame, 21″
- Sunday Nightshift Forks, 28mm
- Odyssey Thunderbolt+ Cranks, 170mm
- Odyssey Boss v2 Bars, 9.25″
- Odyssey Hazard Lite Rims
- Odyssey Clutch v2 Freecoaster
- Right Hand or Left Hand Drive
- Sunday Street Sweeper or Current v2 Tires
Specifications
Frame: Sunday Soundwave V3, 21″ TT, 100% chromoly, 41-Thermal®, w/removable brake hardware
Fork: Sunday Nightshift, 20″, 100% chromoly, 41-Thermal®, aftermarket fork, 28mm offset

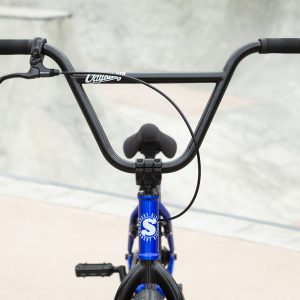

Handlebar: Odyssey Boss V2, 9.25 x 29″, 12° BS, 2° UP, 100% chromoly, post-weld heat-treated

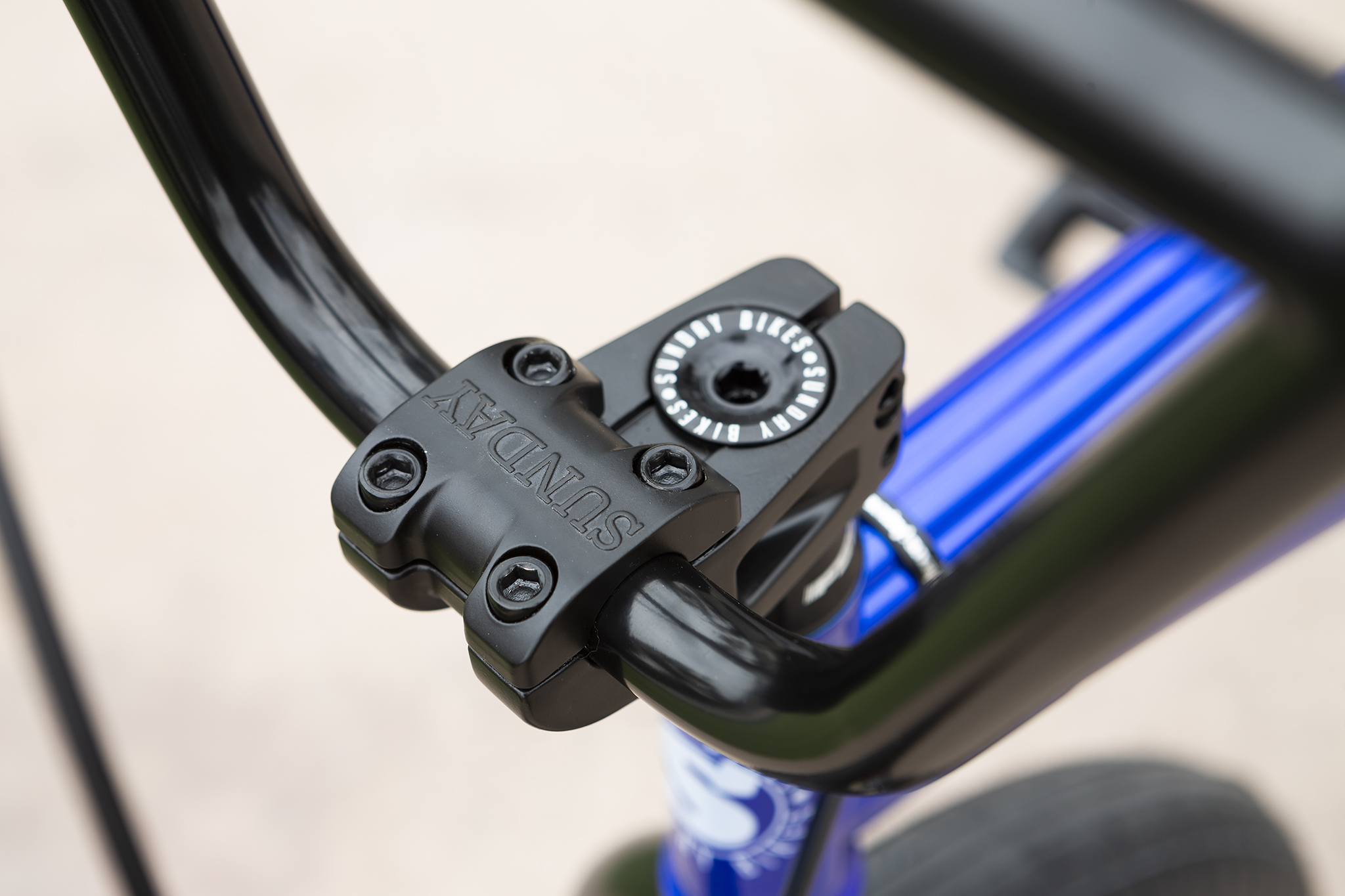

Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated conical, 1-1/8″
Alloy Cap: Sunday aftermarket, aluminum

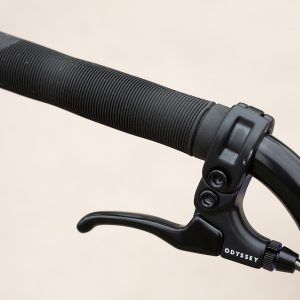

Brake Lever: Odyssey Monolever
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Odyssey Warnin’
Seat: Odyssey Monogram, Pivotal
Seat post: Odyssey Pivotal
Seat Clamp: Sunday aftermarket slim clamp
Sprocket: Sunday Knox guard sprocket, 25T, 7075 aluminum
Cranks: Odyssey Thunderbolt+, 170mm, 100% chromoly, 41-Thermal®, LHD
BB Parts: Sealed, Mid, 22mm
Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Hazard Lite, 20″, 36H
Front Hub: Odyssey Vandero Pro, 36H, sealed, 3/8″ female axle, 2 plastic guards
Rear Hub: Odyssey Clutch V2 FC, 36H, 14mm female axle w/ 9T driver, non-drive PC guard
Spokes: 14g steel, black
Tires: Sunday Street Sweeper or Current v2, 20 x 2.4″ (F & R)
Chain: KMC Z1 wide
*Specs subject to change without notice.
GEOMETRY
Frame
Top Tube Length: 21″
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2″ – 13.5″
Bottom Bracket Height: 11.5″
Standover: 9”
Handlebar
Rise: 9.25″
Width: 29″
Backsweep: 12°
Upsweep: 2°
Weight
Brakeless: 23.41 lbs.
